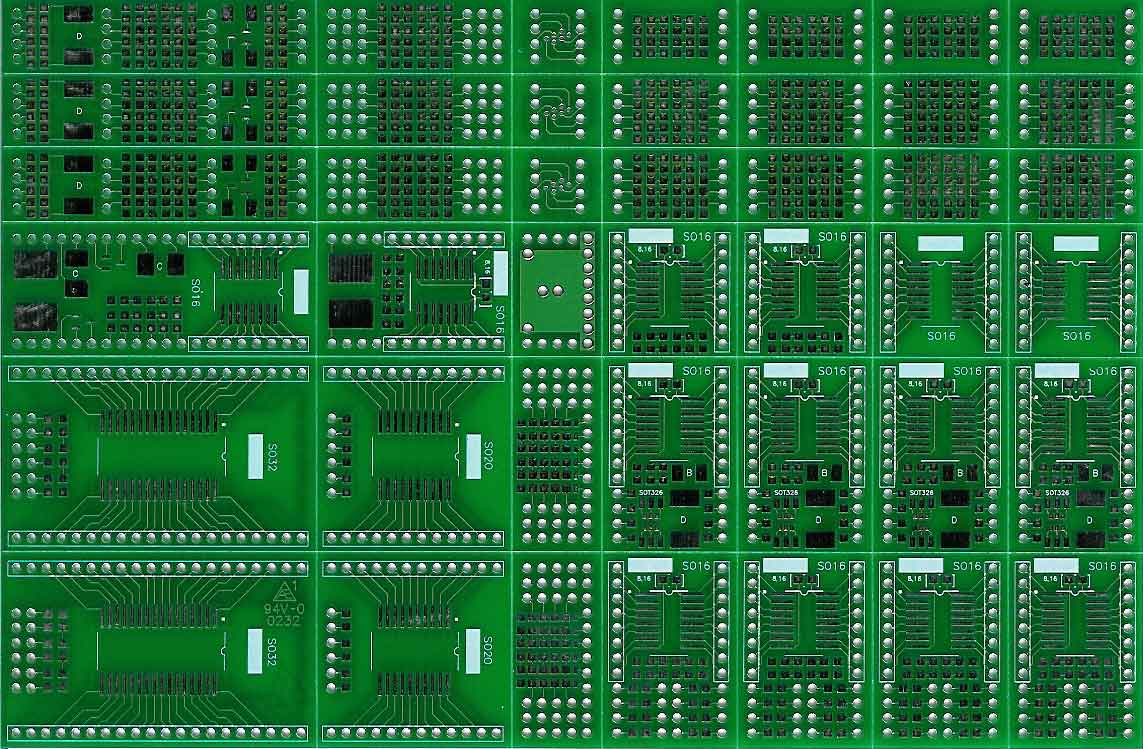

B505 Snap-ApartTM: SOIC SMT







Patterns:

  • SO8, SO8+Decoupling 805 for logic or op-amp, SO8 to 8 pin DIP, SO8+Through Holes Proto
  • SO8+Assorted SMT Proto, SO8+Shield Plane, SO14, SO16, SO14+Through Holes Proto,
  • SO16+Through Holes Proto, SO14+Assorted SMT Proto (Style 1)
  • SO16+Assorted SMT Proto (Style 1), SO14+Assorted SMT Proto (Style 2)
  • SO16+Assorted SMT Proto (Style 2), SO20+805, SO24+805, SO32+805, SO40+805
  • Accomodates both Narrow and Wide SOIC packages.


Where to Buy



Click Part # below to buy from Mouser:

853-B505


Click Part # below to buy from Jameco:

215520



If unavailable through distributors, buy direct here:

Direct
