Products

Table of Contents / Section Links for rapid browsing

1. Discrete and Tiny Components
2. Dual Row
3. Quad Package
4. Proto Boards / Connector Layout
5. Conversion (SOIC SMT to other patterns)
6. PitchSticksTM



Need help finding a pattern? Click here for a Cross Reference.
Looking for an older product?  Click here for most legacy products.


How To Buy:
Click board below to go to its product page, then proceed to available online distributors.


NOTE: If you have no other available alternative other than to buy direct from us, send purchase order first via email to
sales@beldynsys.com and once the order and payment method is confirmed, you will be sent a link that allows credit
card payments.  Hobbyists, make sure to include full contact info, US shipping address and telephone number in your
email.  We only ship UPS, FOB Anaheim California.  Distributors will generally ship faster with lower shipping costs.



Snap-ApartTM and PitchSticksTM Prototyping Adapters


Discrete and Tiny Components

B502 Snap-ApartTM
Small SMT and Modules

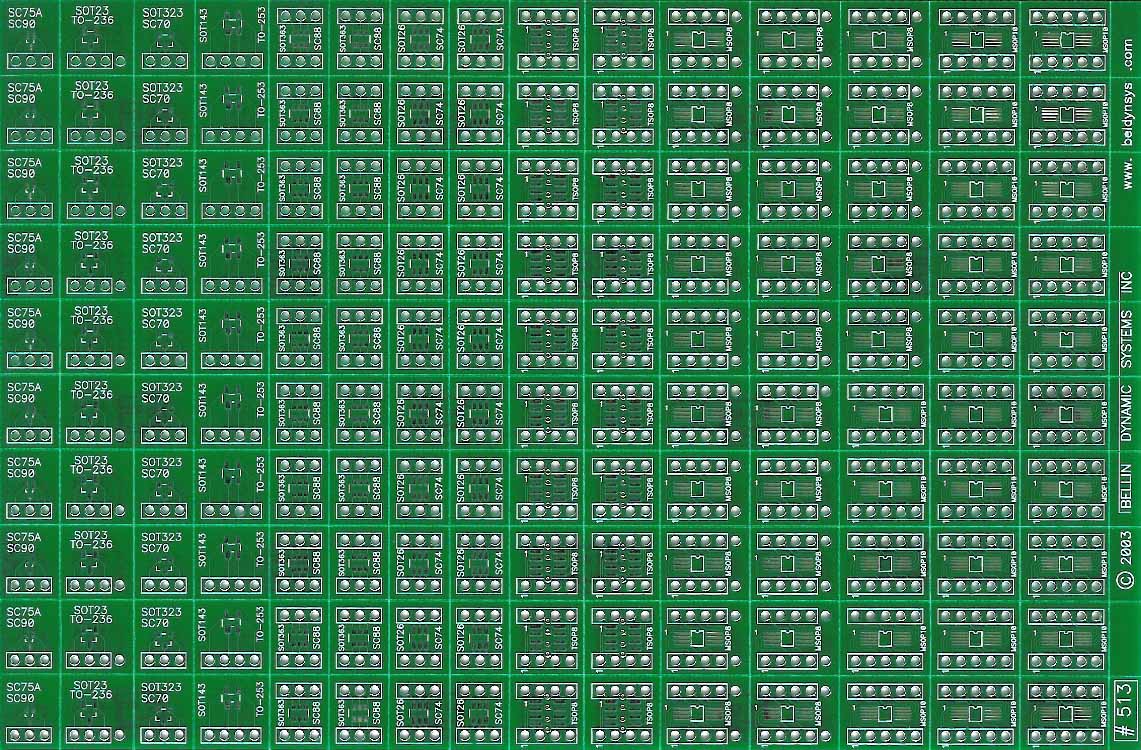

B513 Snap-ApartTM
Small SMT

Our widest variety, with common circuits too. SO, SOT23, SC90,
MSOP, DPAK, more.

150 patterns on both sides.  SC, SOT23, SOT323, TSOP,
MSOP8/10, many more.




- click boards for detailed product pages -

Dual Row Components

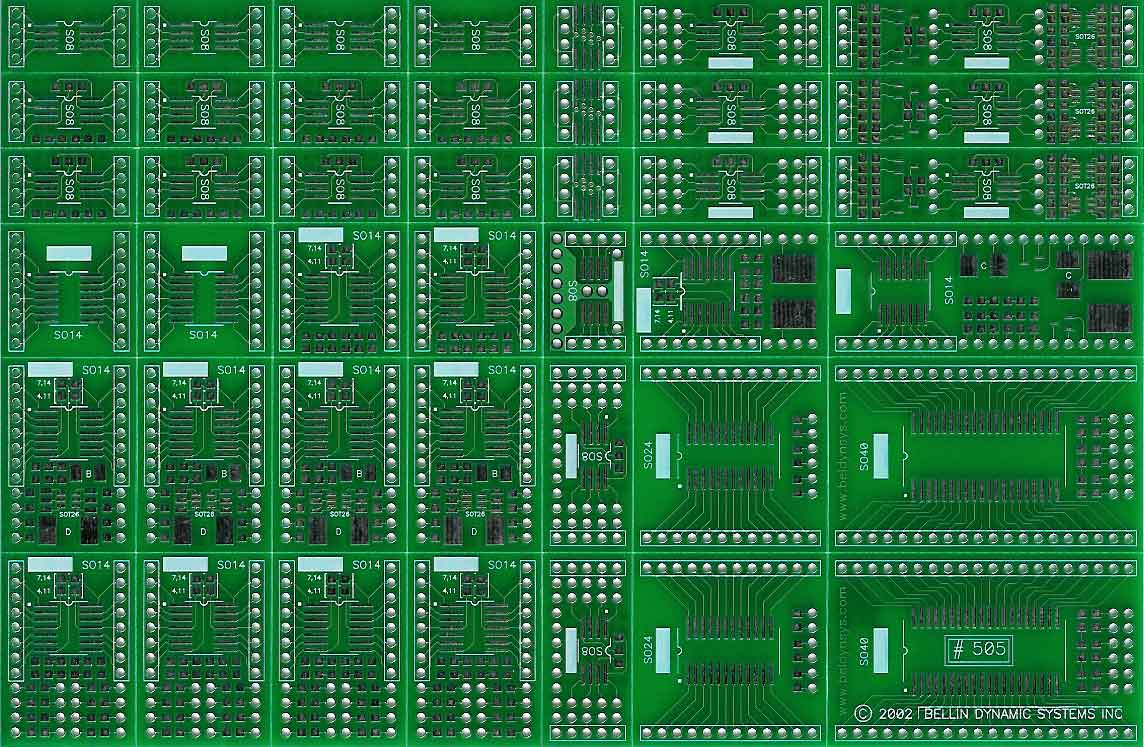

B505 Snap-ApartTM
SOIC

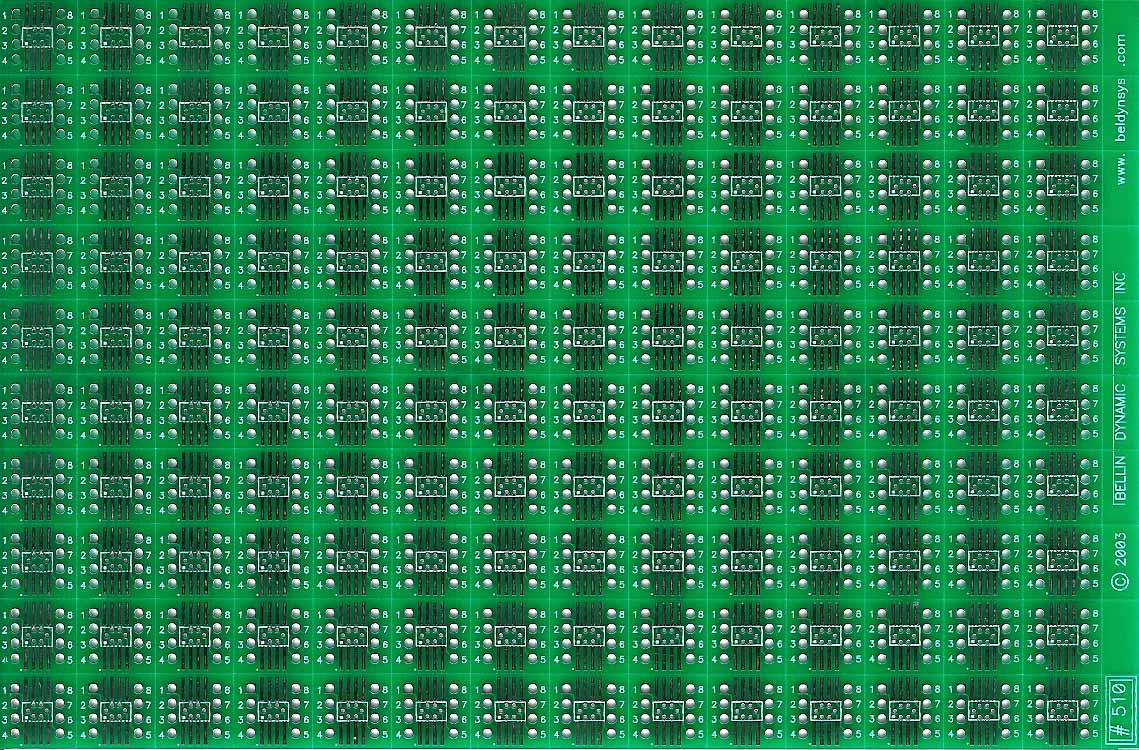

B510 Snap-ApartTM
SO8 to DIP .300"

SOIC wide variety: 8, 14, 16, 20, 24, 32, and 40 with
small SMT, through-hole pads.

140 SOIC 8 to DIP .300" for prototyping, or DIP to SMT retrofit.



B514 Snap-ApartTM
SOIC Narrow to DIP .300"

B515 Snap-ApartTM
SOIC to DIP .600"

SOIC 8, 14, 16, 18, and 20, narrow. 72 general-purpose
SOIC to DIP adapters.

SOIC 24, 28, 32 narrow/wide. 30 general-purpose
SOIC to DIP adapters.



B503 Snap-ApartTM
Dual Row SMT

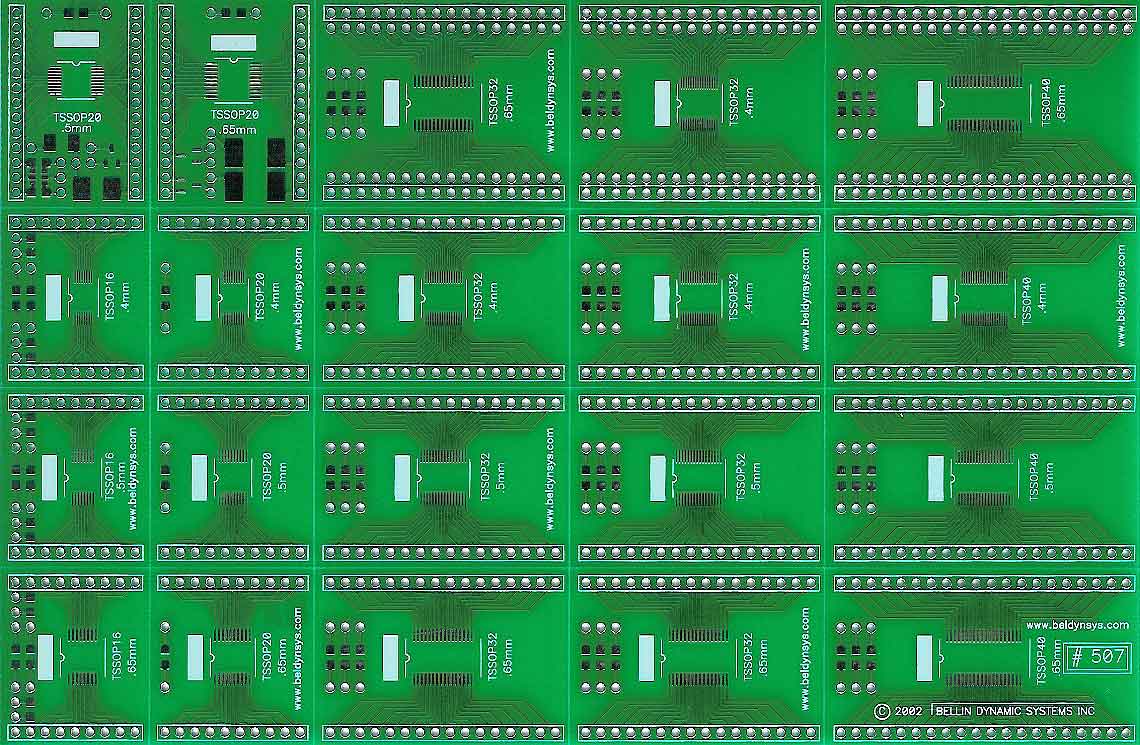

B507 Snap-ApartTM
SSOP/TSSOP

A very wide variety of dual-row: SOIC, MSOP, TSOP,
QSOP, SSOP/TSSOP.

20 SSOP / TSSOP patterns, both sides. 16/20/32/40 leads;
.65, .5, and .4mm pitch.



B516 Snap-ApartTM
.65mm TSSOP to DIP

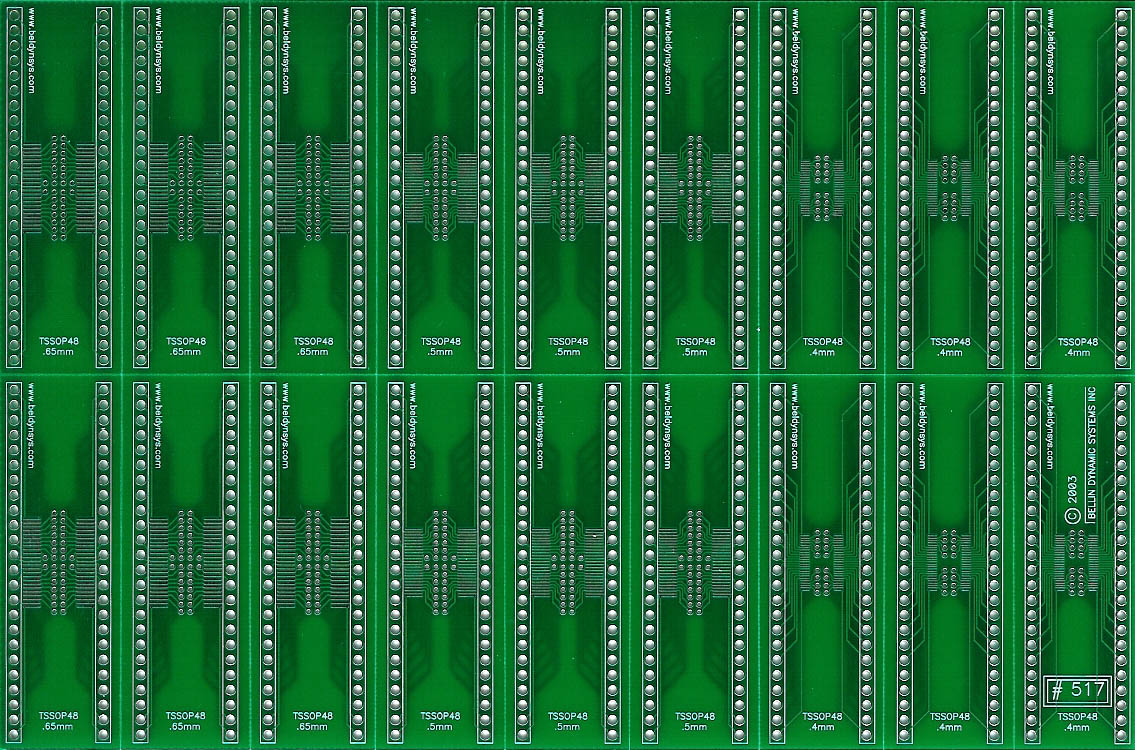

B517 Snap-ApartTM
TSSOP48 to DIP .600"

54 SSOP or TSSOP to DIP, for 14, 16, 20, and 28 pin devices.
.65mm pitch TSSOP only.

18 SSOP/TSSOP 48 pin to DIP .600. Fits .65, .5, and .4mm pitch.



B536 Snap-ApartTM
.5mm TSSOP to DIP

B537 Snap-ApartTM
.4mm TSSOP to DIP

54 SSOP or TSSOP to DIP, for 14, 16, 20, and 28 pin devices.
 .5mm pitch TSSOP only.

54 SSOP or TSSOP to DIP, for 14, 16, 20, and 28 pin devices.
.4mm pitch TSSOP only.




- click boards for detailed product pages -

Quad Package Components

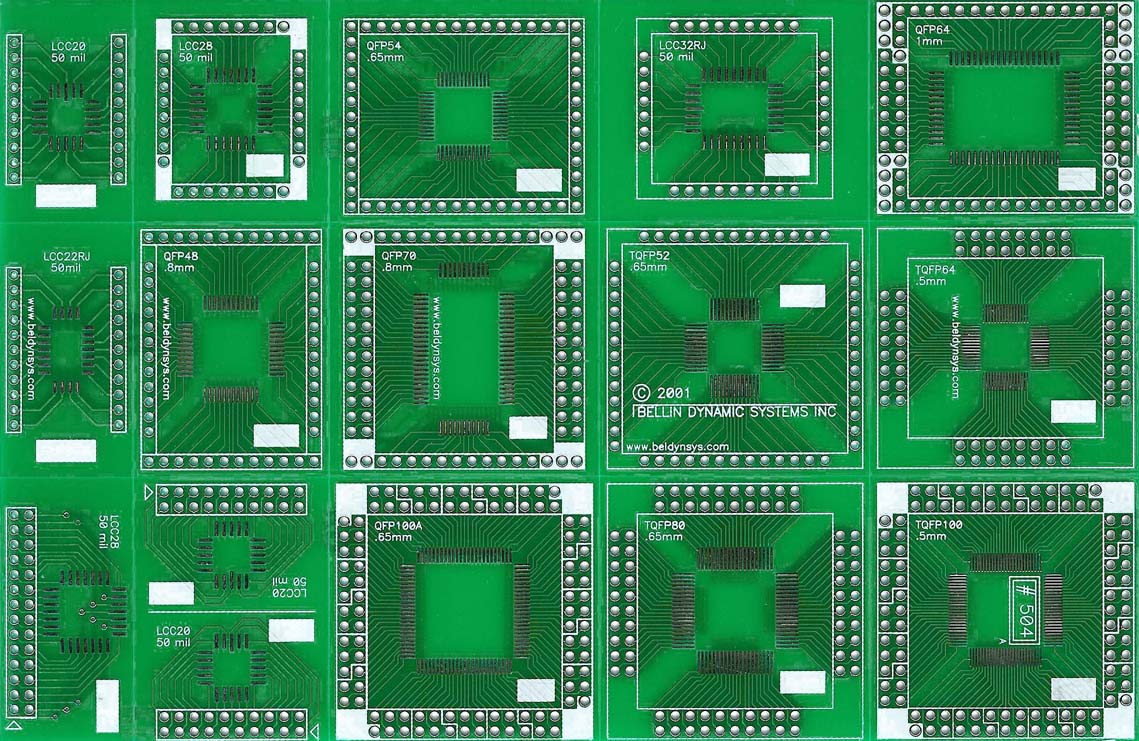

B504 Snap-ApartTM
Quad

B512 Snap-ApartTM
PLCC

PLCC: 18, 20, 22, 28, 32, 44 QFP/TQFP: 32, 44, 48, 52,
54, 64, 70, 80, 100

Each adapter can fit 3 to 5 different types. PLCC 18, 20, 22,
28, 32, 44, 68, 84, 100.

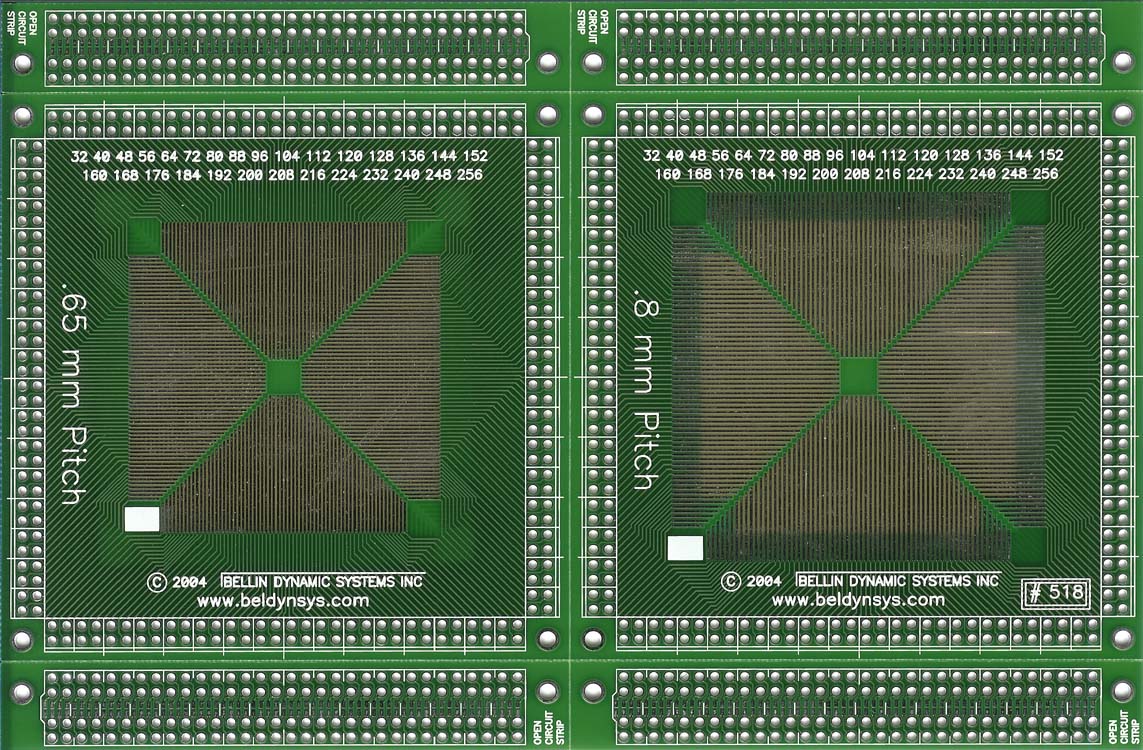

B518 Snap-ApartTM
Universal Quad .65mm, .8mm Pitch

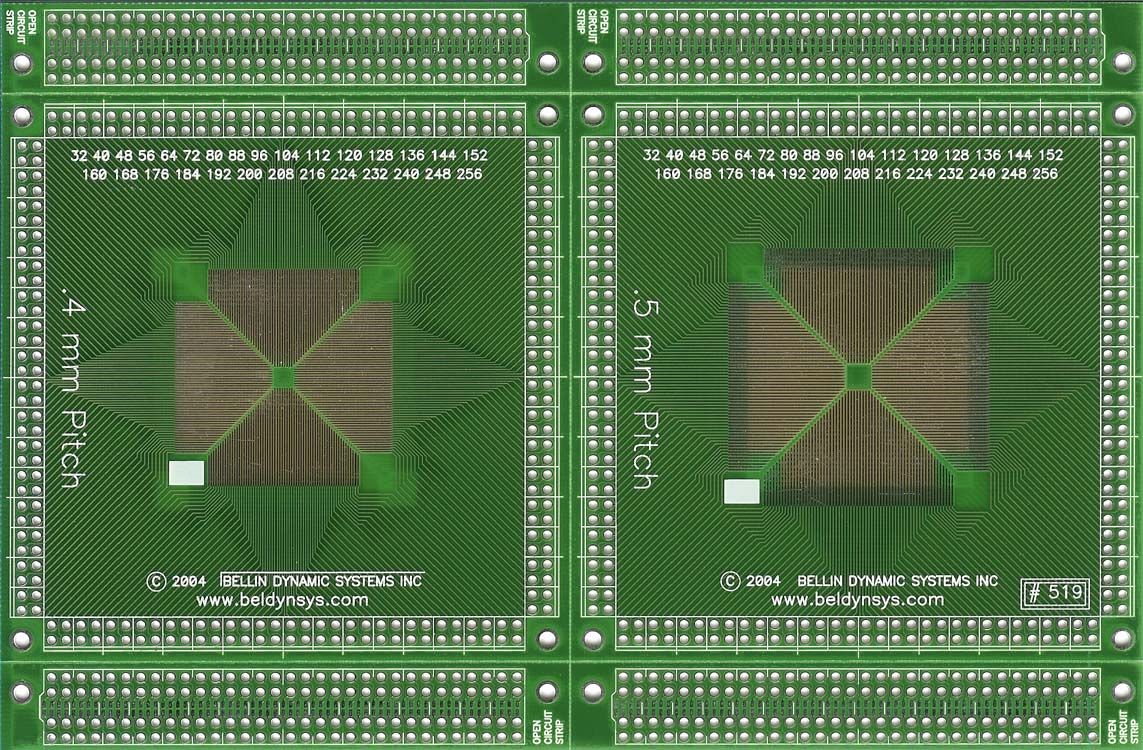

B519 Snap-ApartTM
Universal Quad .4mm, .5mm Pitch

2 adapters, .65 pitch one side, .8mm on other.
Fits pincount: QFP/TQFP 32 through 256

2 adapters, .4 pitch one side, .5mm on other.
Fits pincount: QFP/TQFP 32 through 256



B530 Snap-ApartTM
MLF/QFP/QFN

B531 Snap-ApartTM
MLF/QFP/QFN

.65mm and .8mm pitch.
for 8, 16, 24, 32, 40, 48, 56, 64, 72, or 80 pins

.65mm and .8mm pitch.
for 4, 12, 20, 28, 36, 44, 52, 68, or 76 pins



B532 Snap-ApartTM
MLF/QFP/QFN

B533 Snap-ApartTM
MLF/QFP/QFN

.4mm and .5mm pitch.
for 8, 16, 24, 32, 40, 48, 56, 64, 72, or 80 pins

.4mm and .5mm pitch.
for 4, 12, 20, 28, 36, 44, 52, 68, or 76 pins



B535 Snap-ApartTM
MLF/QFP/QFN




4 to 32 pins, .4/.5/.65/.8mm pitch





- click boards for detailed product pages -

Prototyping Boards / Connector Layout Components

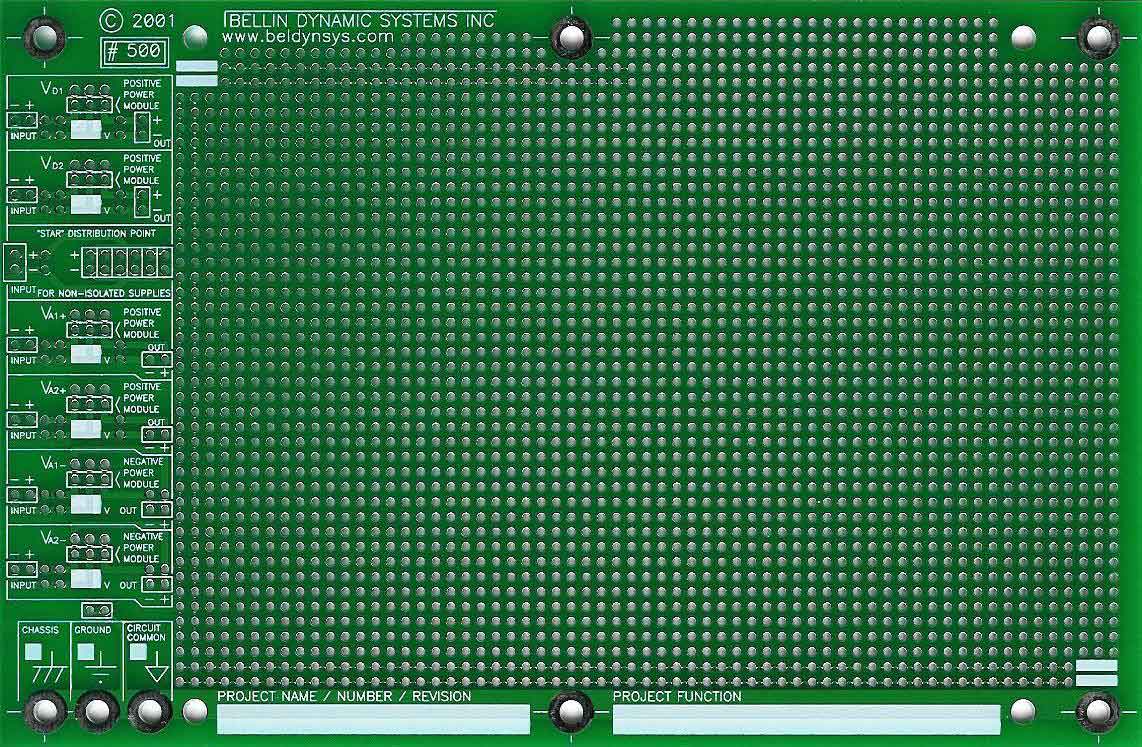

B500
Development Board

B500-3P
Dev. Board 3-Pack

Includes six labeled areas for power regulation,
and a 'star ground' point for .100" headers.

3-pack of B500 boards.



B501 Snap-ApartTM
DB9/15/HD15/25 and more to .100"

B506 Snap-ApartTM
USB, 1394, RJ11/12/45, DB9

Converts pcb-mount DB connectors, some
terminal block and DC power conn to .100"

Convert common serial pcb connectors
to .100" for prototyping, debug and test.



- click boards for detailed product pages -

Conversion (SOIC SMT pads to other patterns)


B521 Snap-ApartTM
8 PAD SOIC

B527 Snap-ApartTM
14 PAD SOIC

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.



B520 Snap-ApartTM
16 PAD SOIC

B524 Snap-ApartTM
24 PAD SOIC

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.



B523 Snap-ApartTM
28 PAD SOIC

B522 Snap-ApartTM
32 PAD SOIC

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.



B526 Snap-ApartTM
40 PAD SOIC

B525 Snap-ApartTM
48 PAD SOIC

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.

Convert or remap SOIC pads to:
DIP, TSOP, MSOP or SOIC.



- click boards for detailed product pages -

PitchSticksTM

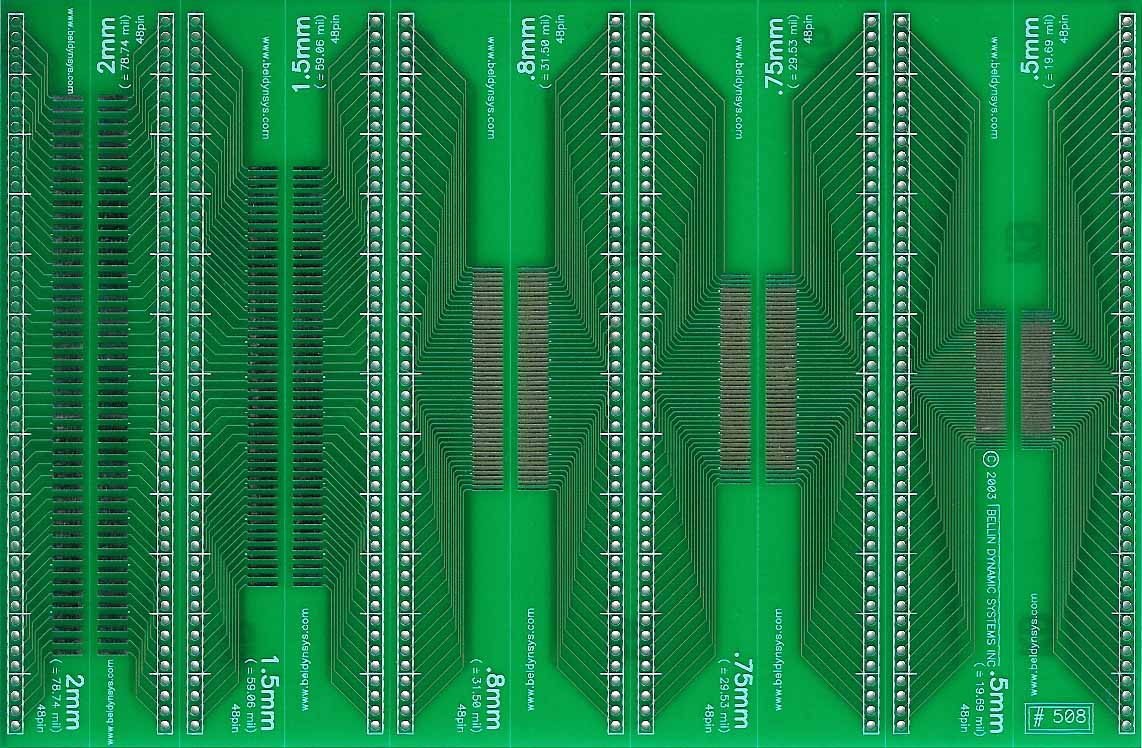

B508 PitchSticksTM
Metric Plus

B509 PitchSticksTM
50 and 25 mil

48 inline SMT pads to .100".
Ten metric and rare SMT pad pitches.

48 inline SMT pads to .100".
50 and 25 mil SMT pad pitches.



B534 PitchSticksTM
.5mm .65mm




48 inline SMT pads to .100".
.5mm and .65mm SMT pad pitches.





- click boards for detailed product pages -
