B513 Snap-ApartTM: Small SMT







Patterns:

We designed this one to make your technical life significantly easier for a long, long time.

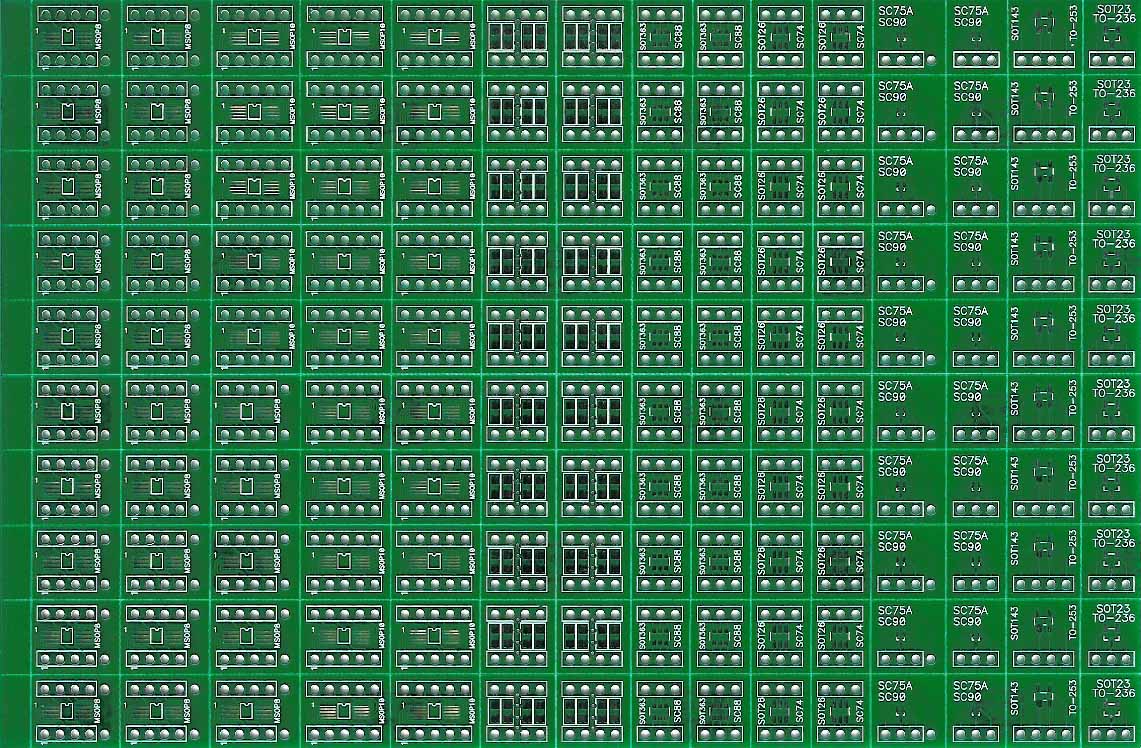

Literally 300 tiny patterns, occupying both sides of 150 pieces.


Front



Back


  Pattern ...or, ...or, ...or,   Pattern ...or, ...or, ...or,
10 each, SC75A SC90       SOT23 TO236
10 each, SOT23 TO236


SOT143 TO263

10 each, SOT323 SC70


SC75A SC90

10 each, SOT143 TO253


SC75A SC90

20 each, SOT363 SC88 SOT353,
SOT323
SC88A,
SC70

SOT26 SC74 SOT25, SOT23 SC74A,
TO236
20 each, SOT26 SC74 SOT25, SOT23 SC74A,
TO236

SOT363 SC88 SOT353,
SOT323
SC88A,
SC70
20 each, TSOP8 TSOP6


805 pads (x4)


25 each, MSOP8  Note 1


MSOP10  Note 1

25 each, MSOP10  Note 1


MSOP8  Note 1


Note 1: MSOP8 at .65mm pitch and MSOP10 at .5mm pitch can be useful for matching
manufacturer-specific package names that arise from time to time.

Note 2:  There are fifty (50) MSOP 8's -or- fifty (50) MSOP 10's, depending upon which sides of the
Snap Apart adapters you use.
