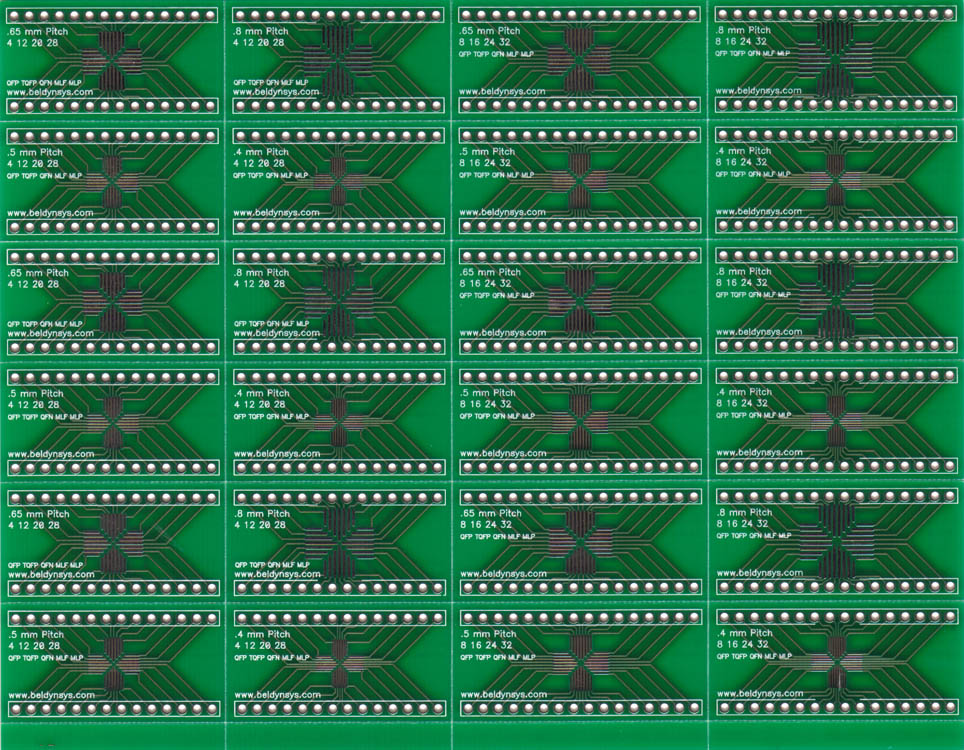

 Front side zoom               Back side zoom

     Included:

            40 pin Straight header strip, .100", Qty (6)

     Data Sheet:     535.pdf    Print this data sheet at 1:1 scale to check IC's, pads.


• This fits square packages with both EVEN AND ODD number of pins per side.
• 24 Universal adapters for up to 32 pins, in all four popular pitches: .4mm, .5mm, .65mm and .8mm.
• Small adapters fit into DIP .600" sockets
• Fits QFP, MLF, QFN or any comparable square package.
• Patterns on the back alternate in such a way that you get six patterns of each kind, on separate pieces.
